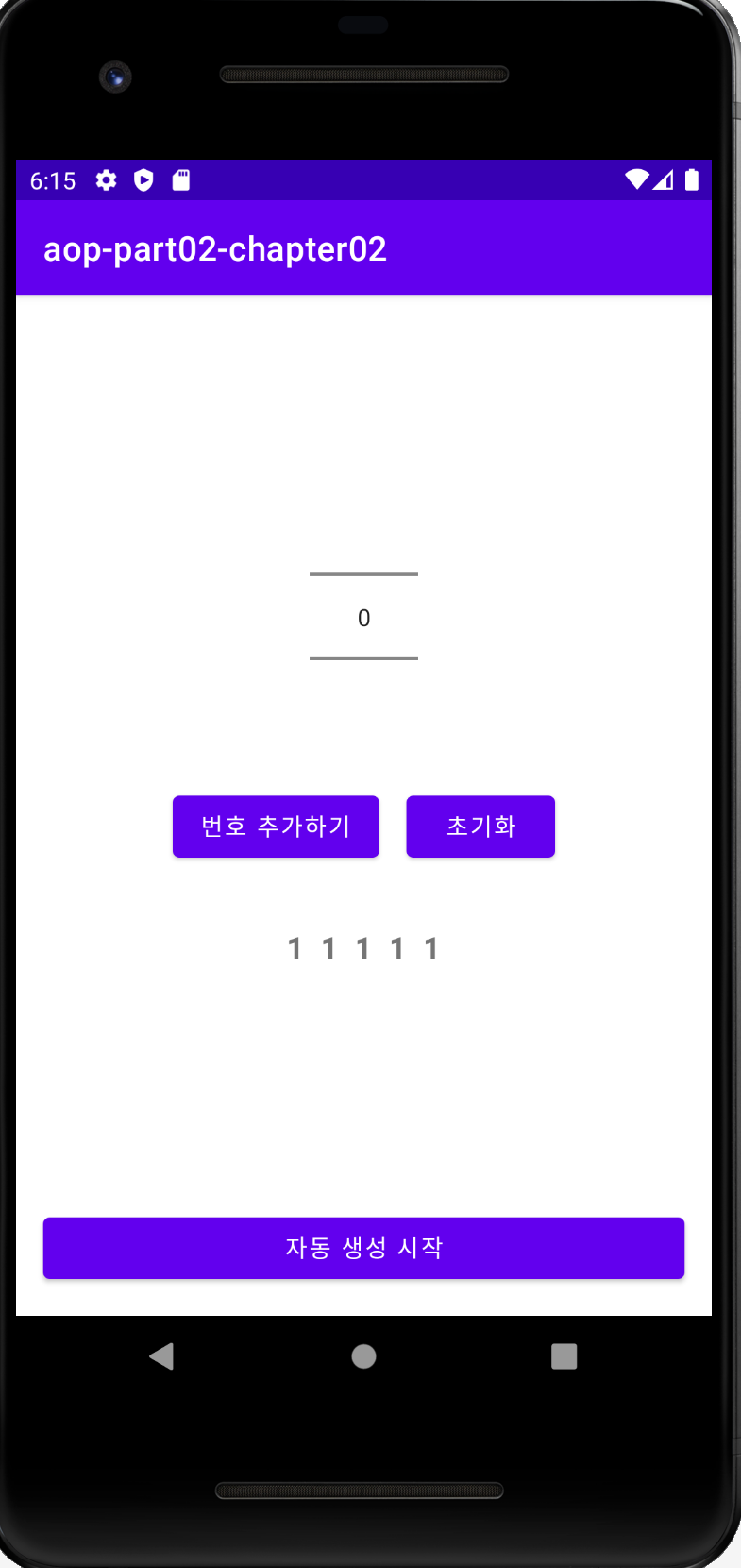

-constraint 화면 구성
전 프로젝트에서는 linear 화면 구성을 사용한 반면에
constraint 화면 구성을 사용했다
여러 제약을 통해 유연하게 앱 화면을 구성할 수 있다
구체적인 예시는 아래에서 살표보자
activity_main.xml 전체 코드
<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".MainActivity">
<NumberPicker
android:id="@+id/numberPicker"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_marginTop="100dp"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toTopOf="parent" />
<Button
android:id="@+id/addButton"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_marginTop="10dp"
android:layout_marginEnd="16dp"
android:text="번호 추가하기"
app:layout_constraintEnd_toStartOf="@+id/clearButton"
app:layout_constraintHorizontal_chainStyle="packed"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toBottomOf="@+id/numberPicker" />
<Button
android:id="@+id/clearButton"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="초기화"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toEndOf="@+id/addButton"
app:layout_constraintTop_toBottomOf="@+id/numberPicker"
app:layout_constraintTop_toTopOf="@+id/addButton" />
<LinearLayout
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_marginTop="30dp"
android:gravity="center"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toBottomOf="@+id/addButton">
<TextView
android:id="@+id/first_generated_num"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_margin="5dp"
android:text="1"
android:textSize="18sp"
android:textStyle="bold" />
<TextView
android:id="@+id/second_generated_num"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_margin="5dp"
android:text="1"
android:textSize="18sp"
android:textStyle="bold" />
<TextView
android:id="@+id/third_generated_num"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_margin="5dp"
android:text="1"
android:textSize="18sp"
android:textStyle="bold" />
<TextView
android:id="@+id/fourth_generated_num"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_margin="5dp"
android:text="1"
android:textSize="18sp"
android:textStyle="bold" />
<TextView
android:id="@+id/fifth_generated_num"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_margin="5dp"
android:text="1"
android:textSize="18sp"
android:textStyle="bold" />
</LinearLayout>
<Button
android:id="@+id/runButton"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_marginStart="16dp"
android:layout_marginEnd="16dp"
android:layout_marginBottom="16dp"
android:text="자동 생성 시작"
app:layout_constraintBottom_toBottomOf="parent"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toStartOf="parent" />
</androidx.constraintlayout.widget.ConstraintLayout>
<NumberPicker
android:id="@+id/numberPicker"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_marginTop="100dp"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toTopOf="parent" />
-numberpicker 코드 생성
-구성
top
start end
bottom
-제약 추가
app:layout_constraintEnd_toEndOf = "parent"
numberpicker의 오른쪽 경계를 바탕화면의 오른쪽으로부터 제약을 받도록 설정한다
그렇게 되면 numberpicker가 화면 오른쪽에 붙는다
같은 방식으로 top start end에 설정한 후

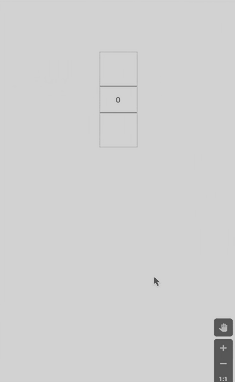

marginTop을 설정하여서 위치를 아래와 같이 둔다
이러한 방법으로 화면들을 구성했다
<TextView
android:id="@+id/first_generated_num"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_margin="5dp"
android:text="1"
android:textSize="18sp"
android:textStyle="bold"
android:visibility="gone"
tools:visibility="visible" />
-android:visibility="gone"은 작동된 화면상에서는 이 TextView의 text가 보이지 않는다
그러나 tools:visibility="visible"을 통해 코드상 화면에서는 보이도록 설정했다
activity_main.xml 파일의 버튼들을 MainActivity.kt에 연결해보자
private val clearButton: Button by lazy {
findViewById<Button>(R.id.clearButton)
}
private val addButton: Button by lazy {
findViewById<Button>(R.id.addButton)
}
private val runButton: Button by lazy {
findViewById<Button>(R.id.runButton)
}
private val numberPicker: NumberPicker by lazy{
findViewById<NumberPicker>(R.id.numberPicker)
}

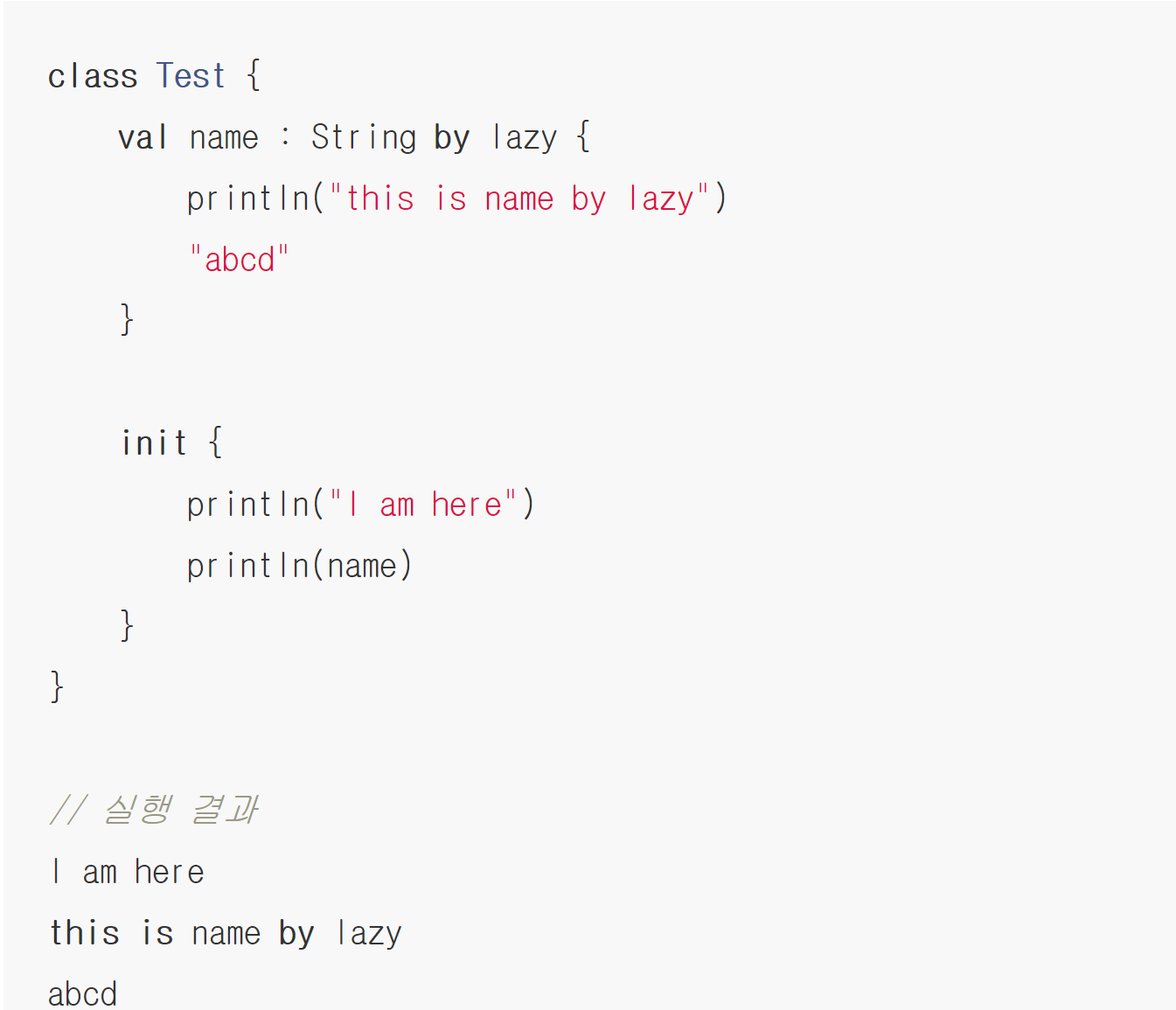

-by lazy
변수가 선언되면 그때 해당 값이 assign된다
뒤늦게 할당되어서 lazy인듯하다.
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContentView(R.layout.activity_main)
numberPicker.minValue = 1
numberPicker.maxValue = 45
initRunButton()
initAddButton()
}
-numberPicker가 작동되기 위해서는 minval과 maxval이 설정되어야 한다
-initRunButton, initAddButton 함수를 작동시킨다
함수 코드는 아래에...
initRunButton
private fun initRunButton(){
runButton.setOnClickListener{
val list = getRandomNumber()
Log.d("MainActivity", list.toString())
}
}
private fun getRandomNumber(): List<Int>{
val numberList = mutableListOf<Int>()
.apply {
for (i in 1..45){
this.add(i)
}
}
numberList.shuffle()
val newList = numberList.subList(0,6)
return newList.sorted()
}
-추후에 수정할듯
-일단 Log에 랜덤으로 중복없이 생성된 6가지 번호를 정렬하여 추출하는 코드를 작성
-logic
1-45의 번호를 리스트에 넣고 shuffle함수를 사용하여 섞은 뒤
앞 6개의 번호를 slicing하여 다른 리스트에 할당하고 정렬 함수를 써서
리턴하였음
이를 initRunButton에서 로그를 찍어 확인하는 것으로 코드를 작성함
initAddButton함수
private fun initAddButton() {
addButton.setOnClickListener{
if (didRun) {
Toast.makeText(this, "초기화 후에 시도해주세요. ", Toast.LENGTH_SHORT).show()
return@setOnClickListener
}
if (pickedByUserNumberSet.size >= 5){
Toast.makeText(this, "번호는 5개까지만 선택할 수 있습니다. ", Toast.LENGTH_SHORT).show()
return@setOnClickListener
}
if (pickedByUserNumberSet.contains(numberPicker.value)) {
Toast.makeText(this, "이미 선택한 번호입니다. ", Toast.LENGTH_SHORT).show()
return@setOnClickListener
}
val textView = AutoGeneratedNumList[pickedByUserNumberSet.size]
textView.isVisible = true
textView.text = numberPicker.value.toString()
pickedByUserNumberSet.add(numberPicker.value)
}
}
private val previousNumTextView: List<TextView> by lazy {
listOf<TextView>(
findViewById<TextView>(R.id.first_generated_num),
findViewById<TextView>(R.id.second_generated_num),
findViewById<TextView>(R.id.third_generated_num),
findViewById<TextView>(R.id.fourth_generated_num),
findViewById<TextView>(R.id.fifth_generated_num),
findViewById<TextView>(R.id.sixth_generated_num)
)
}
-didRun함수는 flag 값인듯하다... 추후에 코드 수정
-
val textView = previousNumTextView[pickedByUserNumberSet.size]
pickedByUserNumberSet은 사용자에게 번호가 뽑히기 전에는 크기가 0이다.
따라서 번호가 뽑히면서 순차적으로 첫번째부터 번호가 할당된다.
textView.isVisible = true
textView.text = numberPicker.value.toString()
pickedByUserNumberSet.add(numberPicker.value)
-textView를 그동안 보이지 않게 설정했으므로 다시 보이게 설정한다.
-textView.text를 numberPicker에 할당된 번호로 지정한다.
-->화면상에 뽑힌 번호가 보이게 된다
-pickedByUserNymberSet에 뽑힌 번호를 추가하며 함수 마무리
initClearButton 함수 구현
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContentView(R.layout.activity_main)
numberPicker.minValue = 1
numberPicker.maxValue = 45
initRunButton()
initAddButton()
initClearButton()
}
private fun initRunButton(){
runButton.setOnClickListener{
val list = getRandomNumber()
didRun = true
list.forEachIndexed{
index, number -> val textView = AutoGeneratedNumList[index]
textView.text = number.toString()
textView.isVisible = true
}
Log.d("MainActivity", list.toString())
}
}
-forEachIndexed 를 통해 index와 내용을 동시에 추출한다
이 리스트에서 index와 number를 가져와서 순차적으로 textView에 할당하여
이를 화면에 띄우도록 한다
private fun initClearButton() {
clearButton.setOnClickListener{
pickedByUserNumberSet.clear()
previousNumTextView.forEach{
it.isVisible= false
}
didRun = false
}
}
-초기화 버튼 기능
버튼을 눌렀을 때 set을 초기화한다
그 후 previousNumTextView를 순차적으로 초기화한ㄷ

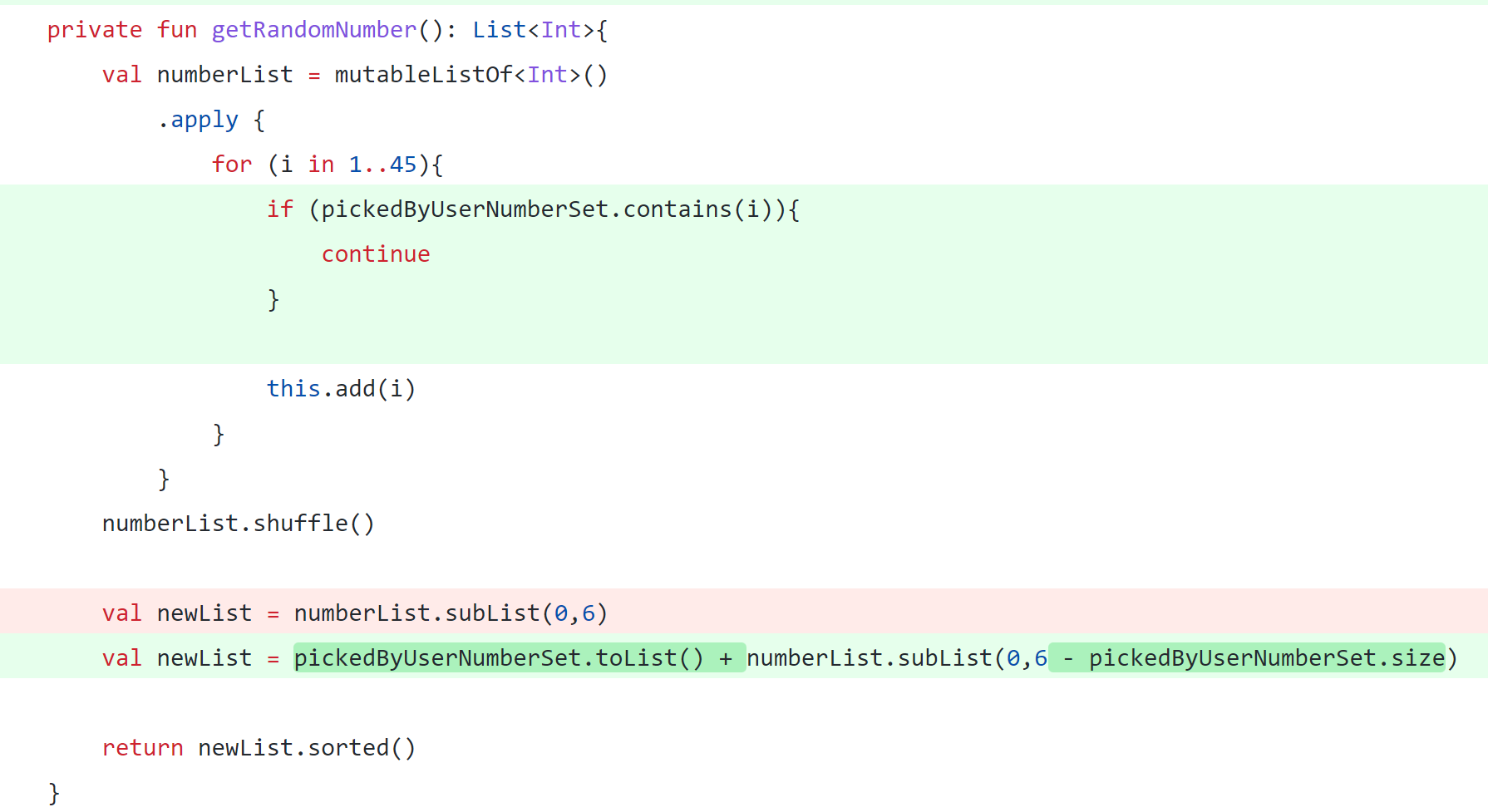

-getRandomNumber 함수 수정
큰 목적: 사용자가 뽑은 숫자들과 자동으로 생성된 숫자들을 조합하여 리턴하자
res>drawble에 drawble 파일들을 추가한다
<?xml version="1.0" encoding="utf-8"?>
<shape android:shape="oval"
xmlns:android="http://schemas.android.com/apk/res/android">
<solid
android:color="#5FB5DB"/>
<size
android:width="44dp"
android:height="44dp"/>
</shape>
-shape 추가 oval은 원 의미
-solid 속성 추가하여 색깔을 입힘
-size 속성 추가하여 가로 세로 크기 지정
이와 같은 파일들을 5개 추가한다 각각 다른 색으로
private fun setNumberBackground(number: Int, textView: TextView) {
when(number) {
in 1..10 -> textView.background = ContextCompat.getDrawable(this, R.drawable.circle_yellow)
in 11..20 -> textView.background = ContextCompat.getDrawable(this, R.drawable.circle_blue)
in 21..30 -> textView.background = ContextCompat.getDrawable(this, R.drawable.circle_red)
in 31..40 -> textView.background = ContextCompat.getDrawable(this, R.drawable.circle_gray)
else -> textView.background = ContextCompat.getDrawable(this, R.drawable.circle_green)
}
}
-drawble 소스를 가져오기 위해서 ContextCompat.getDrawble를 사용한다
이를 통해 textView.background를 지정하여 사용한다.
